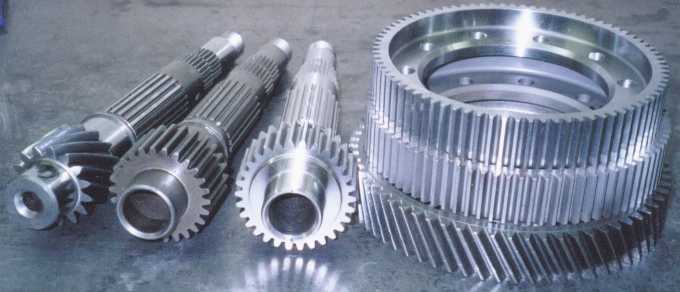

Honda B series gears pictured. Typical pricing is $1500-1800/set with a 3 set minimum order.
We will make custom gears for any transaxle, contact us for a quote.
4.133:1 Honda K series final drive 35mm pinion bearing diameter (race).
3.786:1 Honda K series final drive 35mm pinion bearing diameter (race).

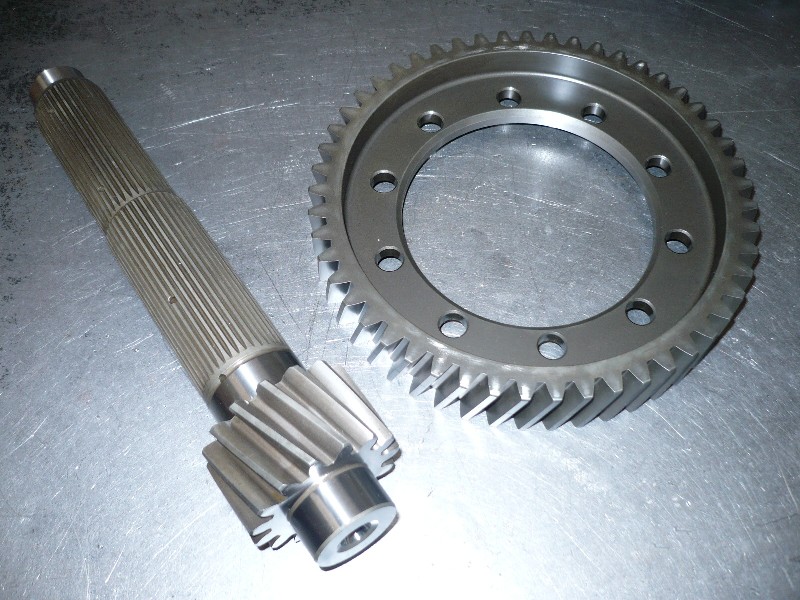

3.400:1 Honda K series final drive 35mm pinion bearing diameter (street) pictured below.
The Honda part number for the 35mm bearing is 91003-PPP-004.
3.29:1 Honda B series 110mm ID ring gear final drive.
3.60:1 Honda B series 110mm & 117mm ID ring gear final drive.

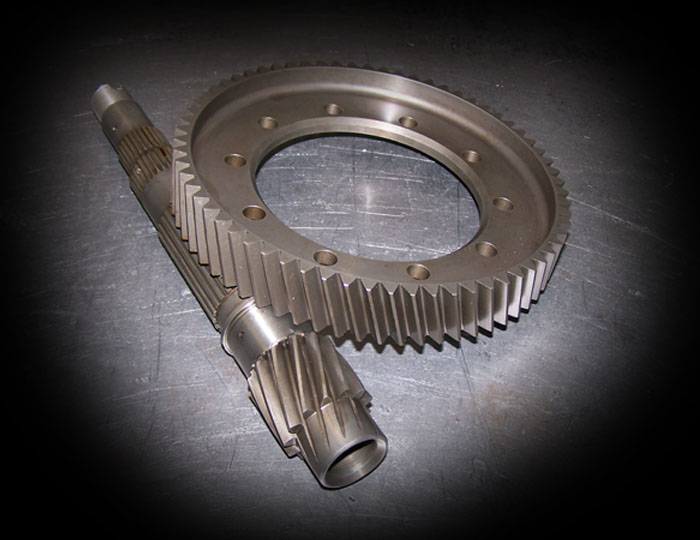

5.08:1 Honda B series 117mm ID ring gear final drive pictured below.
5.43:1 Honda K series automatic final drive.
2.70:1 Honda J series final drive.
|
|
|
|
